219-1620 Mm Spiral Welded Pipe Mill Machine Easy To Operate Energy Saving

Brand Name : TXH

Model Number : 2191020

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : USD 200000-400000

Payment Terms : L/C, T/T

Supply Ability : 10 sets/ year

Delivery Time : 2-3 months

Packaging Details : Plastic packing and wooden case

Name : Spiral welded pipe mill

Material : Carbon steel

Usage : Industry

Feature : Easy to operate

Diameter : 219-1620 mm

Thickness : 5-18 mm

Pipe shape : Circle

Service : 1 year

Weight : 150-250 tons

Contact Now

219-1620 Mm Spiral Welded Pipe Mill Machine Easy To Operate Energy Saving

Spiral Welded Pipe Mill Introduction

1. Introduction
Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder. Large diameter pipes can be produced with narrow steel strip.

2. usage of spiral welded pipe:
For liquid delivery: water supply& drainage
For gas delivery: coal gas, steam and LPG
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.

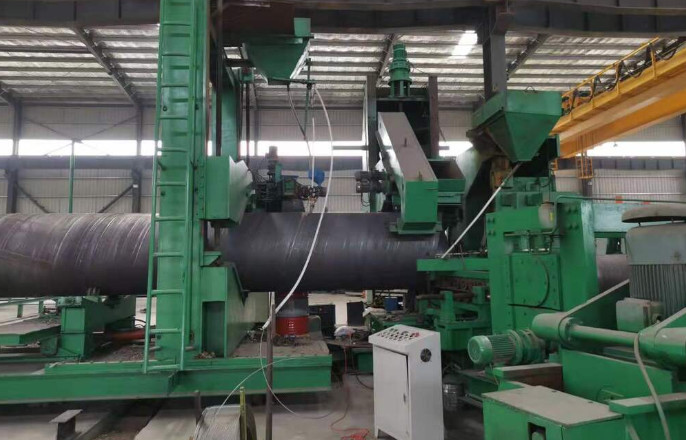

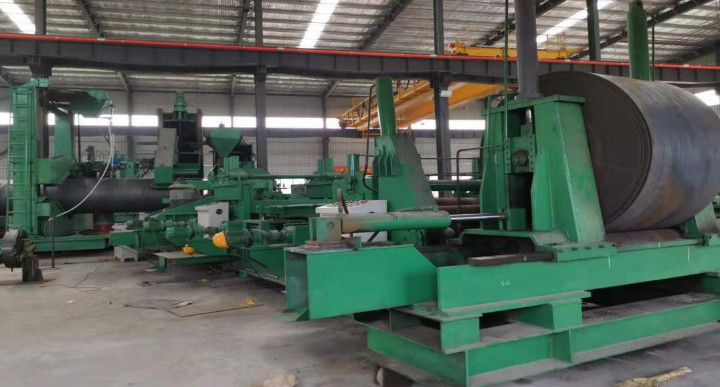

3.Technical process of the spiral welded pipe line:
feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection

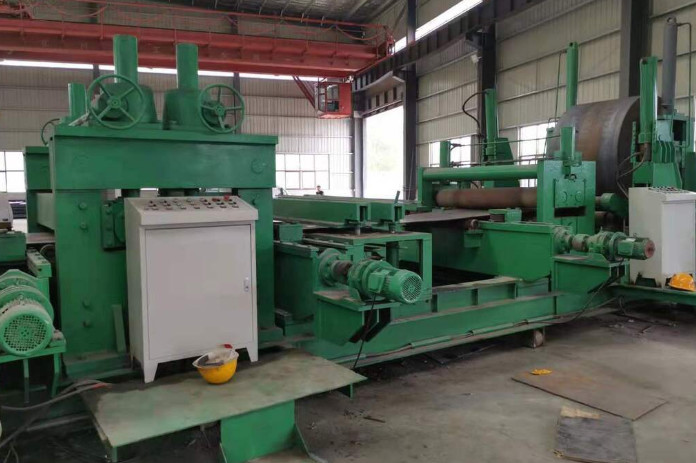

4. Machine parts in the working line
1)Uncoiler
2)Pinching & leveling machine
3)Manual/Electrical roll
4)End - Cutting & butt-welding machine
5)Rotary shear
6)Delivery machine
7)Guide board
8)Forming unit
9)Front bridge
10)Inside/outside welding device
11)Rear bridge
12)Flying saw cutter
13)Buried parts
14)Hydraulic system
15)Electric system
16)Inside/outside welder
17)Butt-weld car
18)Plasma cutter
19)Weld flux processing device
20)Beveling & end-facing machine
21)Hydraulic tester
22)Finishing equipment

219-1620 Mm Spiral Welded Pipe Mill Machine Easy To Operate Energy Saving

5.Front swing spiral welded pipe mill model:

No	Model	Specification	(mm)	Thickness (mm)	Capacity (kw)	Area(M2)
1	HN-426	Φ219~Φ426	300~600	3~14	200	24×200
2	HN -529	Φ219~Φ529	300~800	3~16	300	24×200
3	HN -630	Φ219~Φ630	300~1000	3~18	400	24×200
4	HN -720	Φ219~Φ720	300~1200	4~25.4	500	24×200
5	HN-820	Φ219~Φ820	350~1300	3~14	500	24×200
6	HN -1020	Φ273~Φ1020	350~1300	3~16	800	24×200
7	HN -1420	Φ325~Φ1420	500~1600	3~18	1000	24×200
8	HN -1620	Φ426~Φ1620	500~1600	4~25.4	1500	30×300
9	HN -1820	Φ508~Φ1820	500~2000	4~25.4	1500	30×300
10	HN -2020	Φ508~Φ2020	500~2000	4~25.4	1500	30×300
11	HN -2400	Φ508~Φ2400	500~2000	4~25.4	1800	30×300
12	HN -3000	Φ610~Φ3000	500~2000	4~25.4	1800	30×300
13	HN -3500	Φ720~Φ3500	600~2000	4~25.4	2000	30×300

5.Customer service

Work out reasonable investment scheme, selecting rational model unit.

Provide free equipment layout, factory planning for you.

Provide free equipment foundation and drawing. If necessary, offer technical guidance on-site for equipment
foundation construction.

Provide equipment installation and commissioning, ensure the normal operation of production line.

Provide professional technical training to help your staff familiar with the equipment ASAP.

6.Certificates
